SharePoint - Responsive Design (Bootstrap)

SharePoint Online pages are after all rendered as HTML/CSS and Java Script. In this post I will show how to create a responsive design for SharePoint Online pages using Bootstrap so that they look elegant on different screen sizes (Desktop, tablet, phone) .

Bootstrap is the most popular HTML, CSS, and JS framework for developing responsive, mobile first projects on the web. You can start learning about bootstrap here.

HTML Framework:
Following is the HTML framework that a HTML page should match in order to be responsive to multiple screen sizes.

<html lang="en">
  <head>
    <title>Bootstrap 101</title>

    <!-- Latest compiled and minified CSS -->
    <link rel="stylesheet" href="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.5/css/bootstrap.min.css">

    <!-- Latest compiled and minified JavaScript -->
    <script src="https://maxcdn.bootstrapcdn.com/bootstrap/3.3.5/js/bootstrap.min.js"></script>

  </head>
  <body>

    <div class="container">
        <div class="row">
            <div class="col-sm-6" style="border:1px red solid">Hello</div>
            <div class="col-sm-6" style="border:1px green solid">World</div>
        </div>
    </div>

  </body>
</html>

This code will create 2 responsive divs inside a main container div. Container div will render the content inside the two divs as following on Desktop and the Mobile devices with the help of Bootstrap libraries:

Desktop
Mobile

Responsive SharePoint Page:
Now lets incorporate this framework in to a SharePoint Site.

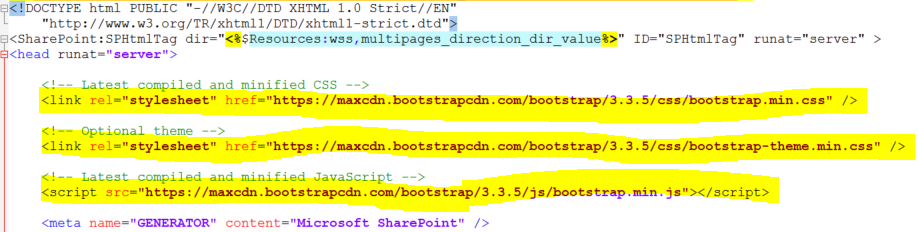

  1. Add following lines in the head tag of Master Page:

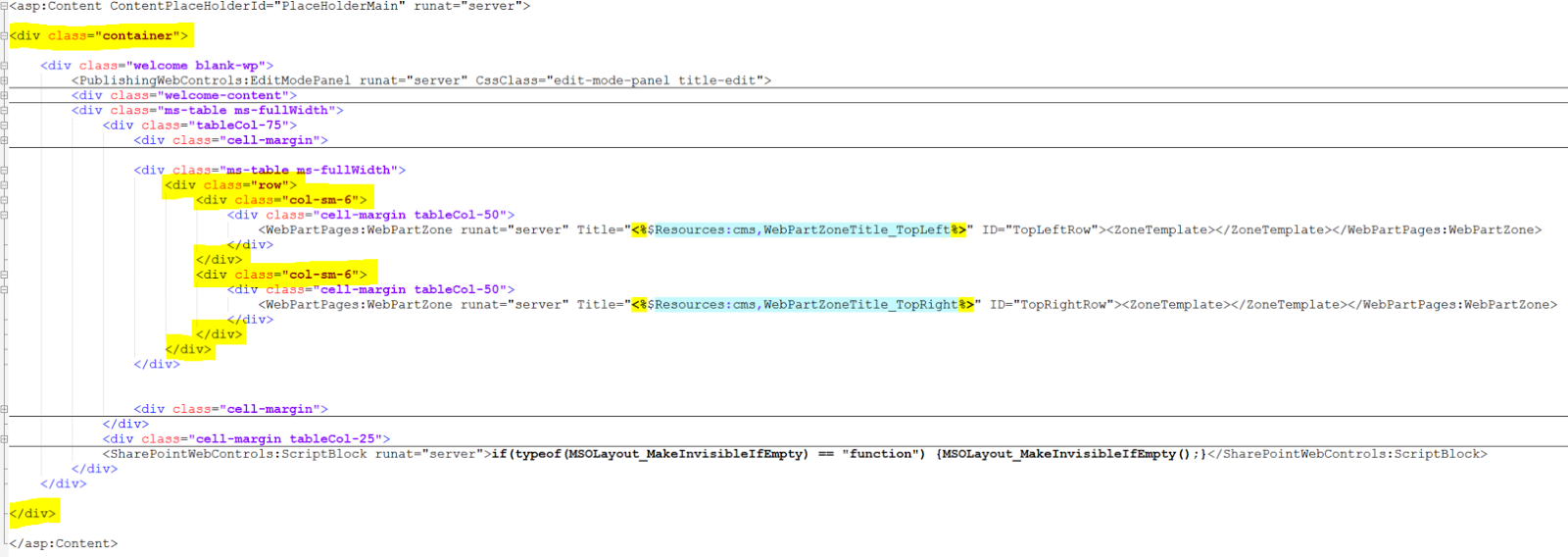

  2. Add the container div in the page inside the PlaceHolderMain tag so that all the HTML of the page resides inside the container div:

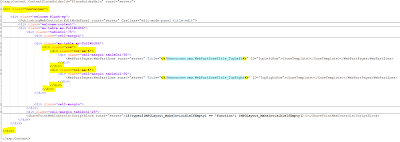

  3. Add the row div and then add the column divs to hold the actual web parts:
  4. Now the web parts on the page will be managed by container div and page will look like this on different screens:

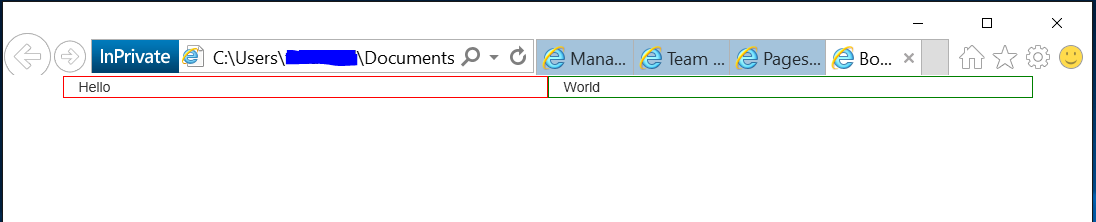

    Desktop
    Mobile
